Transferring molten metal is a critical step that impacts quality, safety, and productivity. MMEI’s Molten Metal Transfer systems utilize precision pump control and quiescent flow to deliver metal smoothly and consistently, whether filling ladles, moving between furnaces, or feeding casting lines. By drawing metal from mid-bath and automatically maintaining steady flow rates, our solutions reduce turbulence and dross, boost yield, and streamline operations, all while enhancing operator safety and lowering overall cost

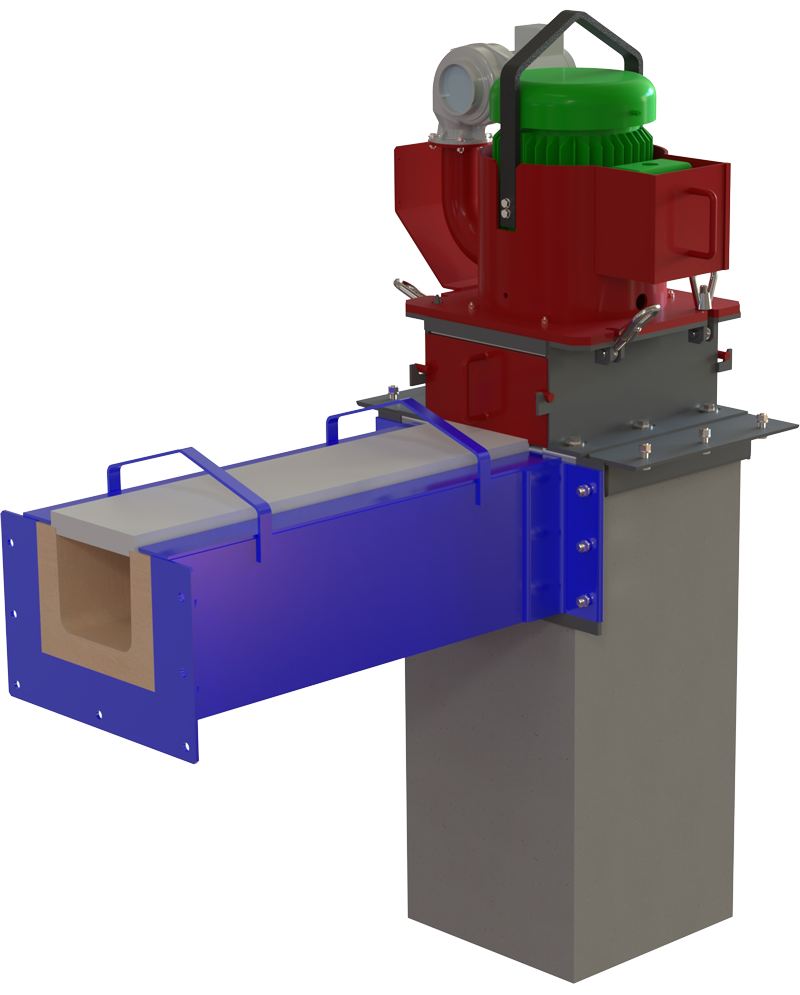

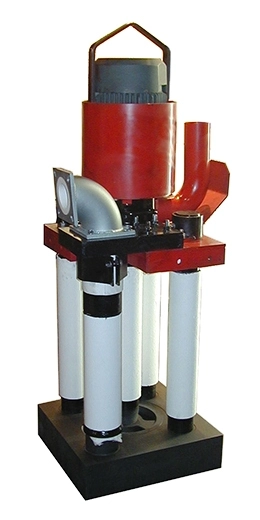

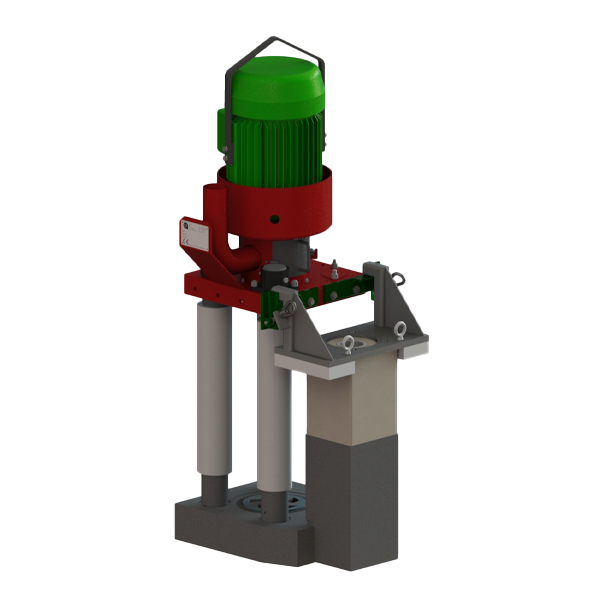

MMEI conventional Transfer pumps are most appropriate for ultra-high-lift applications. The Mini and Workhorse pumps will meet the majority of your conventional transfer applications. Both pumps are available in top and bottom feed versions and are designed for aluminum and zinc applications. The pumps can be driven by either air or the more controllable and economical electric motor. Unlike our competitor’s pumps, our risers are not structural members of the pump and can be easily replaced. The riser sits on a button located on the base and the riser clamp is attached to the motor mount with a bolt. The riser can be changed hot, limited down time.

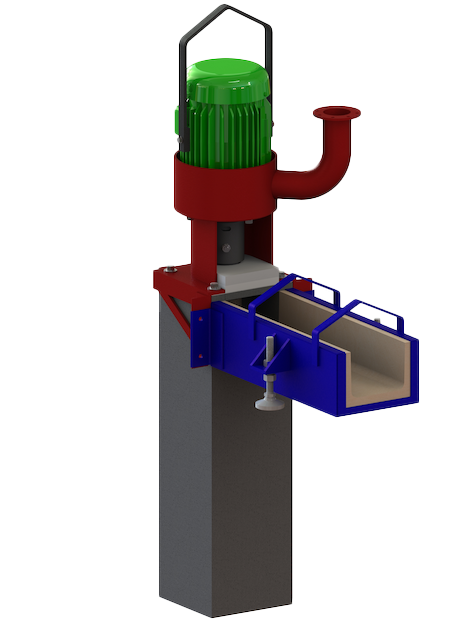

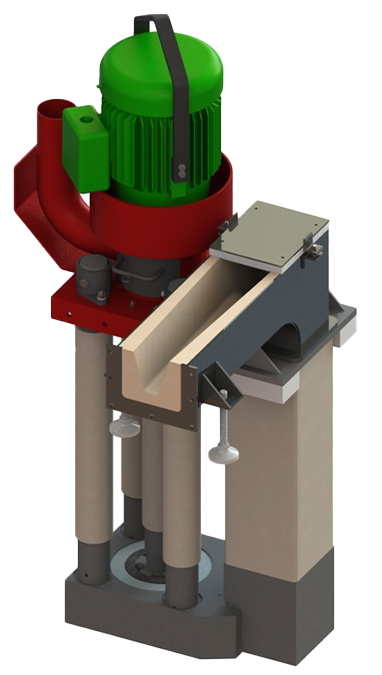

MMEI’s new Raptor and Speed Demon transfer pumps are the perfect solution to pump out your furnace or fill crucibles, ladles, molds or ingots. Driven by a reliable, high efficiency electric motor, this pump has mobile controls and an integrated cooling blower to make sure the motor is always cooled. Used for aluminum and zinc, the quick immersion transfer pump is lightweight, portable and can be moved around easily to plug into any receptacle. The pump body is made from graphite and refractory, which allows quick immersion for fast use with flow rates up to 800 lbs. (360 Kg) per minute. Available in four lengths, this is the transfer pump you need to get the job done.
