Reliable, efficient handling of molten metal for foundry operations
gas injection process

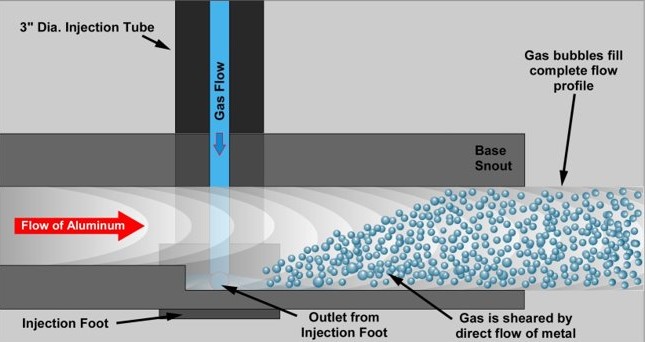

MMEI’s Circulation Pumps have the added optional feature of injecting inert gases or chlorine for demagging your metal bath. We have various designs for the injection tubes to meet our customer’s preference and space restraints. The foot and tube design can be added to most of our circulation pumps with a simple addition of a clamp. Other designs introduce the gas within the pump base, shearing the gas into small bubbles and increasing the gas reaction with the metal. Remove the magnesium from your melt with MMEI gas injection pumps. Improved metal quality, every time!

Gas Injection pump models

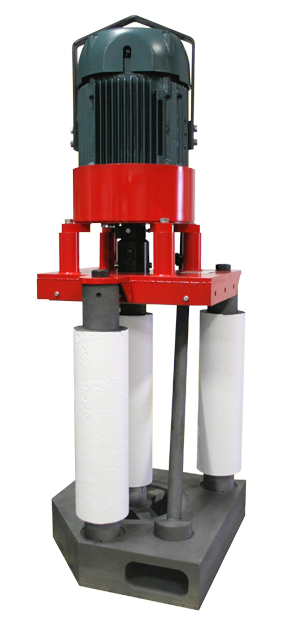

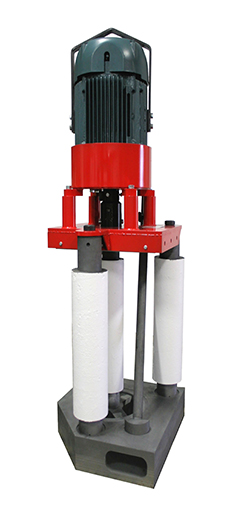

BIGFOOT
angled tube gas injection
bigfoot badge

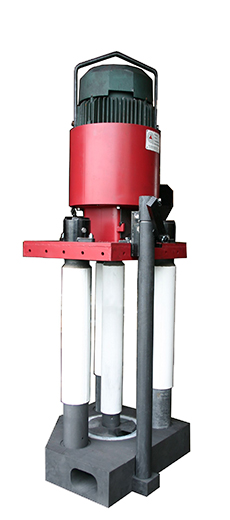

thor
foot and tube gas injection
thor pump badge

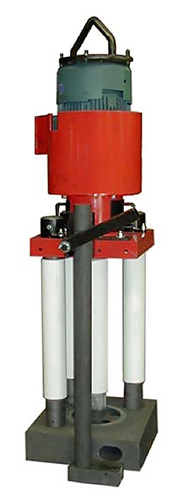

workhorse
foot and tube gas injection
workhorse pump badge
mini
foot and tube gas injection
mini taur badge

Explore Our
Best Features

01.
Offer various designs for injection techniques inside and outside the pump base
02.
Bottom injection techniques have more effective and efficient bubble shearing
03.
In base designs to reduce back pressure
04.
Works with all MMEI Circulation Pumps

Benefits

GAS
INJECTION

gas injection process

DEGASSING
PROCESS

degassing process

MOLTEN METAL TRANSFER

metal transfer process

Furnace
Circulation

furnace circulation
